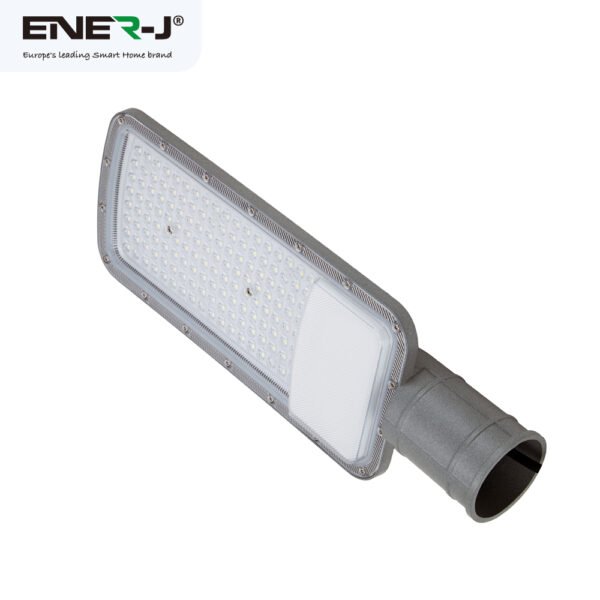

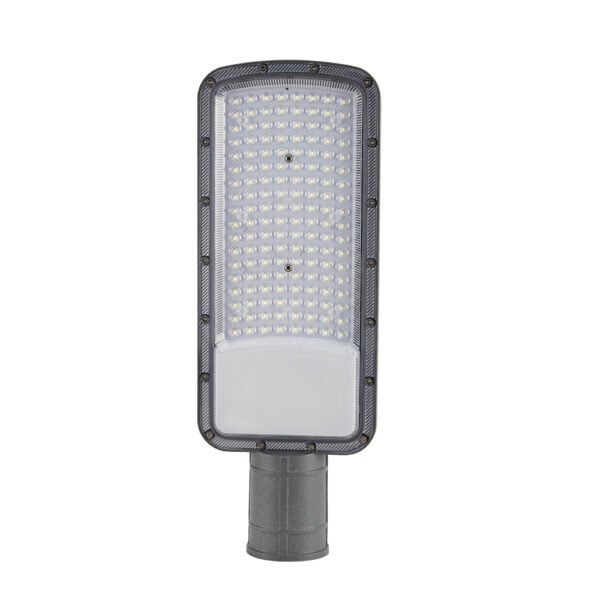

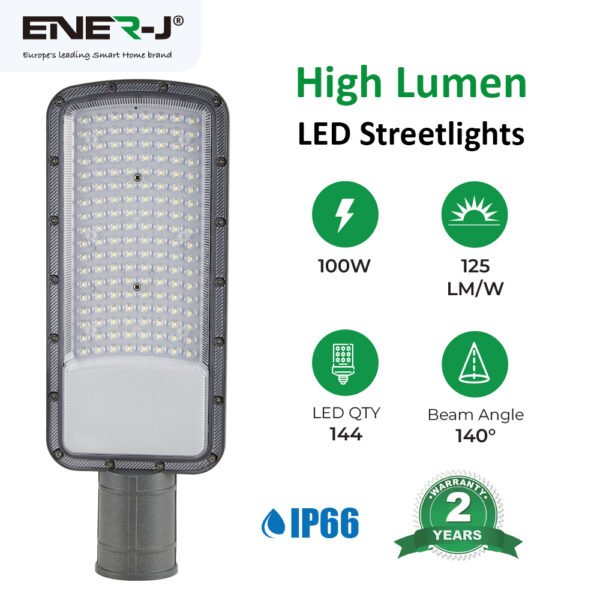

ENER-J 100W Slimline DOB LED Street Light — 12,500 Lumens, 125 lm/W, Wide Voltage 175–400V, Pole Mount

Some outdoor spaces need a streetlight that means business. Wide industrial roads, large factory compounds, logistics yards, and main municipal arteries all demand high, consistent lumen output — night after night, in whatever voltage conditions the grid throws at them. The ENER-J F316 is built precisely for this. At 100W and 12,500 lumens, it’s the 100W LED street light for industrial areas and large-scale outdoor applications that delivers genuine professional-grade output without the energy waste of conventional high-wattage fittings.

Why the F316 Is the Right Specification for High-Demand Applications

• 12,500 lumens at 100W — twice the output of a 50W fitting: At 125 lm/W, the F316 delivers double the lumen output of a 50W streetlight for exactly double the wattage — meaning you can cover significantly larger areas per fitting, or reduce the number of poles needed across a wide installation. Either way, the economics work in your favour.

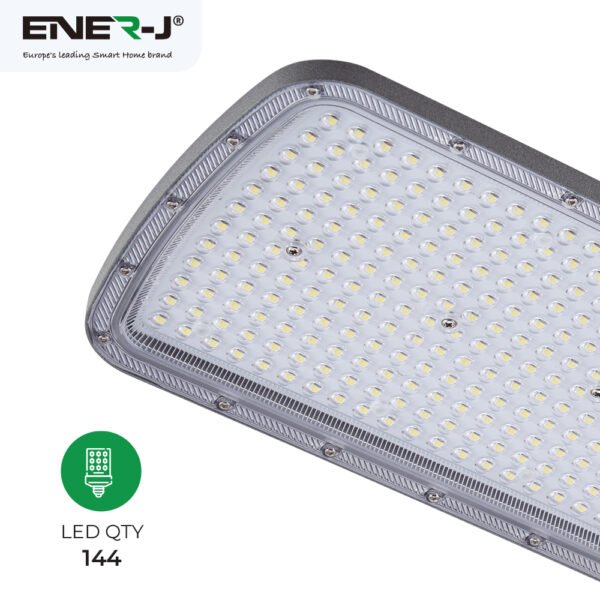

• 144 LEDs for even, wide-area distribution: One hundred and forty-four LEDs spread across the slimline housing, directed by a high-efficiency nano reflector for precise, even coverage of wide road surfaces and large open compounds. No dark patches, no hotspots — just consistent illumination across the full spread.
• Wide 175–400V input — reliable in Indian industrial conditions: Industrial estates and manufacturing compounds are often subject to significant voltage fluctuation — from grid instability, heavy machinery load variation, and transformer limitations. The F316’s 175–400V wide-range input handles all of it without flickering, tripping, or degrading the LED chipset.
• DOB technology eliminates the most common failure point: By integrating the driver directly onto the LED board, the F316 removes the separate driver unit — typically the component that fails first in conventional streetlights, particularly under the thermal stress of continuous high-wattage operation. Fewer components, fewer failure modes, longer service life.
• Built-in surge protection for industrial environments: Industrial power supplies can be subject to significant voltage spikes — from machinery switching, transformer events, and grid restoration after outages. Built-in DOB surge protection handles these automatically, with no external device required.

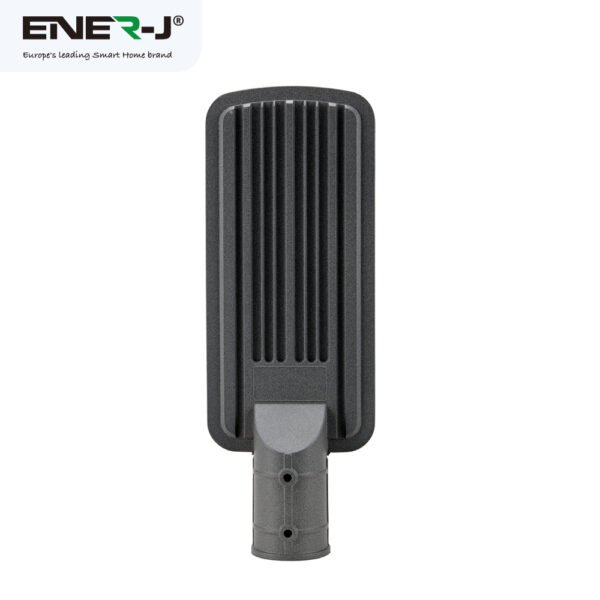

• Ultra-slim die-cast aluminium housing for superior thermal management: At 403 × 143 × 22mm, the F316 maintains the slimline profile of the series despite its 100W output. Die-cast aluminium construction provides the thermal conductivity needed to keep 144 LEDs running at optimal temperature — directly maintaining lumen output and extending operational life.
• PF > 0.9 for large-scale installation efficiency: Across a multi-fitting installation — a factory perimeter, a main road, or a campus — a high power factor means cleaner, more efficient current draw from the grid. For commercial and industrial premises, this can directly reduce power factor penalty charges from the utility.
• CRI > 80 for operational visibility and safety: Workers, vehicles, road markings, and hazards all appear with natural colour accuracy — important for safety compliance in industrial and logistics environments.

Ideal Applications

• Main industrial estate and factory roads
• Large logistics yards and warehouse perimeters
• Wide municipal roads and arterial streets
• Large open-air parking areas
• Campus main roads and institutional perimeters
• Commercial compound and boundary lighting

Specifications

• SKU: F316
• Power: 100W
• Lumen Output: ~12,500 Lumens
• System Efficiency: 125 lm/W
• LED Count: 144 LEDs
• Technology: DOB (Driver-on-Board)
• Input Voltage: AC 175–400V (Wide Range)
• Power Factor: PF > 0.9
• CRI: RA > 80
• Reflector: High-Efficiency Nano Reflector
• Housing: Die-Cast Aluminium, Grey
• Housing Size: 403 × 143 × 22mm (φ50)
• Mounting: Standard Pole-Arm Mount (φ50)
• Surge Protection: Built-in (via DOB design)
• Power Output: 100% Rated Power

What’s in the Box

• 1 × ENER-J F316 100W Slimline DOB LED Street Light
• 1 × Mounting Hardware
• 1 × User Manual

When the space demands serious output — and consistent, reliable performance night after night — the F316 delivers without compromise. Specify it with confidence for roads, compounds, and installations where only professional-grade lighting will do. Order yours today.
